How HUATAO’S Internal Scraping Self-cleaning Filter Machine filtering Egg Mass?

Background:

Eggs as the highly nutrient-dense natural food, containing high-quality protein, various vitamins, minerals, and bioactive components such as lecithin, covering almost all the nutrients the human body needs.Eggs can be processed into various derivatives, such as egg powder, egg white powder, egg yolk powder, and liquid egg products;

So how can we quickly and cleanly obtain these egg derivatives?

Disinfection room→ Egg breaking →mixing → filtering room;

During the egg breaking process, some eggshells can easily get into the liquid egg.So how can we efficiently filter out the eggshells?

Solution:

Some customer choose Pneumatic self cleaning machine for remove the eggshell, while the user feedback the eggshell can not remove completely.In China market, almost of user with our Internal Scraping Self-cleaning Filter for filtering the eggshell, contact us for video check

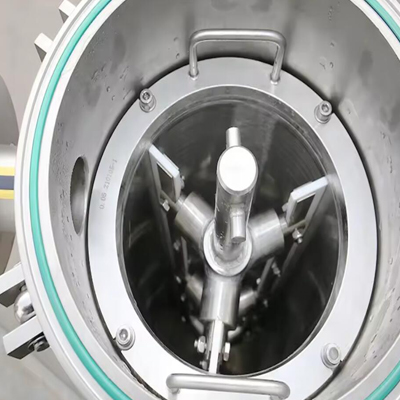

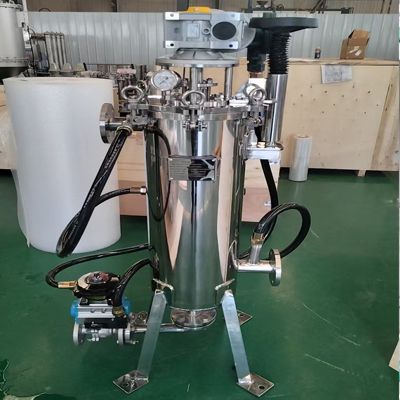

Working principle of HUATAO’s Internal Scraping Self-cleaning Filter Machine:

Our filter can be set with three method to start the filter’s drain work,they are TIME, PRESSURE DIFFERENCE, MANUAL;

1.Time: when filter working time reaches the set point, the control system share an signal. The reduce motor start to work and drive the scraper to remove the particles on the cartridge internal surface.When cleaning time reaches the set point,the drain valve opens and impurity will out,

2.Pressure difference cleaning:When pressure difference between the inlet and the outlet reaches the set point, the reduce motor starts to work. The reduce motor drives the scraper to move and remove impurities on the cartridge internal surface. When the cleaning time reaches the set point, reduce motor stops working.

3. Manual cleaning: The reduce motor drives the scraper to move and remove the particles on the cartridge internal surface continuously. When the time reaches the set point, the worker need to open the drain valve and then impurity will out.

Leave message with HUATAO for more series Filter Solution accordingly!
