How To Improve the quality of your honey?

At its core, honey filtering is a purification process designed to remove a range of physical impurities that are naturally present after extraction from the honeycomb. The primary substances removed include visible debris like beeswax particles, propolis, parts of bees, and other foreign materials from the hive. This process ensures the honey is clean and visually clear.

We understand the importance of protecting the quality of honey. Our HUATAO‘s self-cleaning filter as an environmentally friendly alternative solution to traditional filtration equipment like bags, cartridges or filter presses. The unique swiping system and reusable filter cartridge, removes pollen granules, bee parts such as legs or wings and solid wax particles from residual honeycomb.

The Self-Cleaning Filter is a totally enclosed, keeping your operators and environment safe.

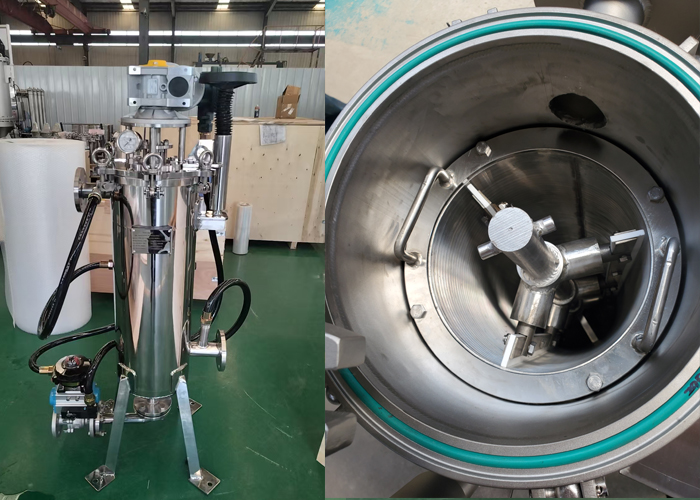

Working Principle Of our Self Cleaning Filter Machine

1)Automatic Cleaning —Mode 1 (Timed Cycle)

Motor:Operates and stops according to a preset schedule.When running,the motor drives the shaft to rotate,allowing the scraper to remove impurities accumulated on the filter cartridge .After the set running time is reached,the motor stops working.After the preset stopping time is reached,the motor starts running again .This cycle continues automatically.

Drain Valve:Opens and closes according to preset schedule; The loop control is identical to the motor loop control.

2)Automatic Cleaning —Mode 2 (Differential Pressure Start)

The device is equipped with pressure sensors at both the inlet and outlet to monitor the inlet pressure and outlet pressure.When the pressure difference between the inlet and outlet reaches the preset value,the device automatically transitions from the circulation state of Mode 1 to this mode;the motor activates, and the discharge process begins immediately.

3)Manual Cleaning

The operating status of the motor and drain valve is controlled entirely via manual switches by worker.

Kindly inform us if you have any filtration quesiton in your honey production line.
