Vibro Round Separator

Description Of Vibro Round Separators

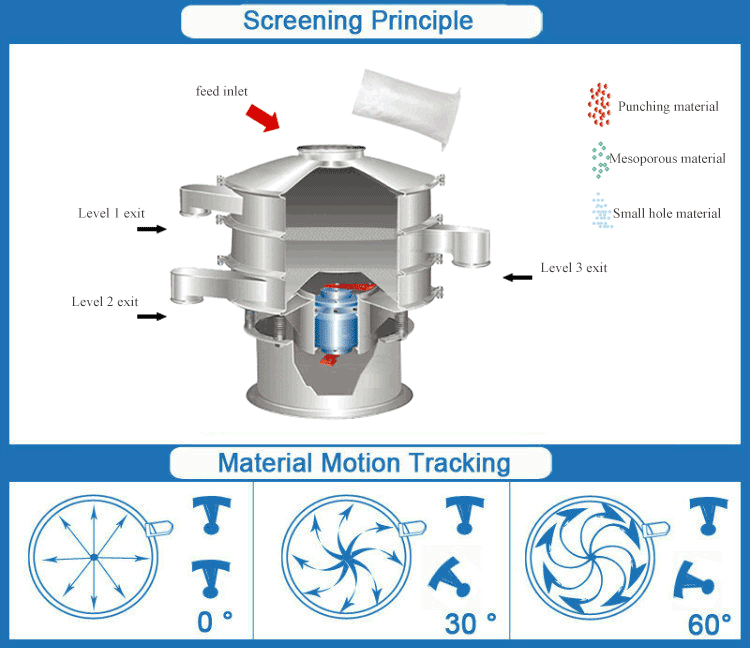

The Vibro round Separator is specially designed to improve the quality of your powder, granule or liquid products for inspection screening of your products, it is ideal for screening incoming ingredients and final production inspection of finished powders, by increasing the number of sieve layers, The product is sieved with different finenesses to achieve precise particle size distribution.

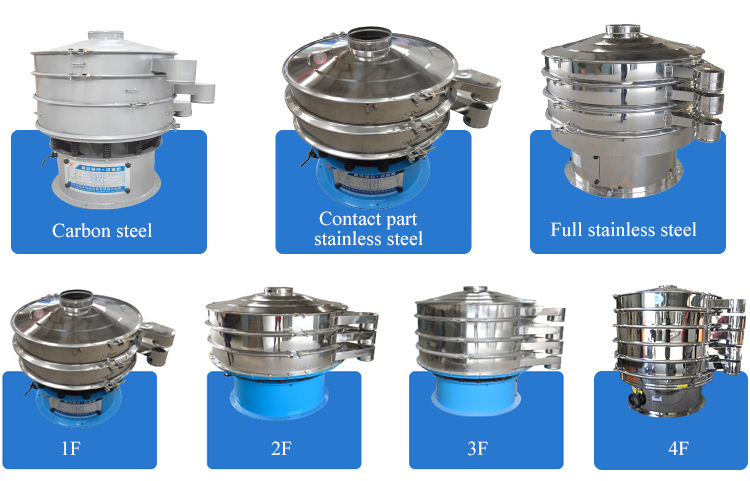

Vibro round Separator has 1-layer, 2-layer, 3-layer, 4-layer and 5-layer sieve plates, it is suitable for sieving from 2 to 500 meshes, and the products can be classified into 2-6 different specifications through different meshes , and eliminates excessive contamination in various applications. Machine contact parts are made of Q235 carbon steel, SS316L, SS304 stainless steel, etc. Interchangeable screens can be provided according to user requirements, providing various sizes from 400 mm to 2000 mm diameter, allowing 100 to 5,000 kg/hour of production, It depends on the product, mesh size and the feed flow of the machine.

Feature Of Vibro Round Separators

1. Vibro round Separator with high precision and high efficiency screening ablity and applied to all kinds of food/ chemical powder, granules.

2. 304 and 316 stainless steel material, make sure the quality of raw material.

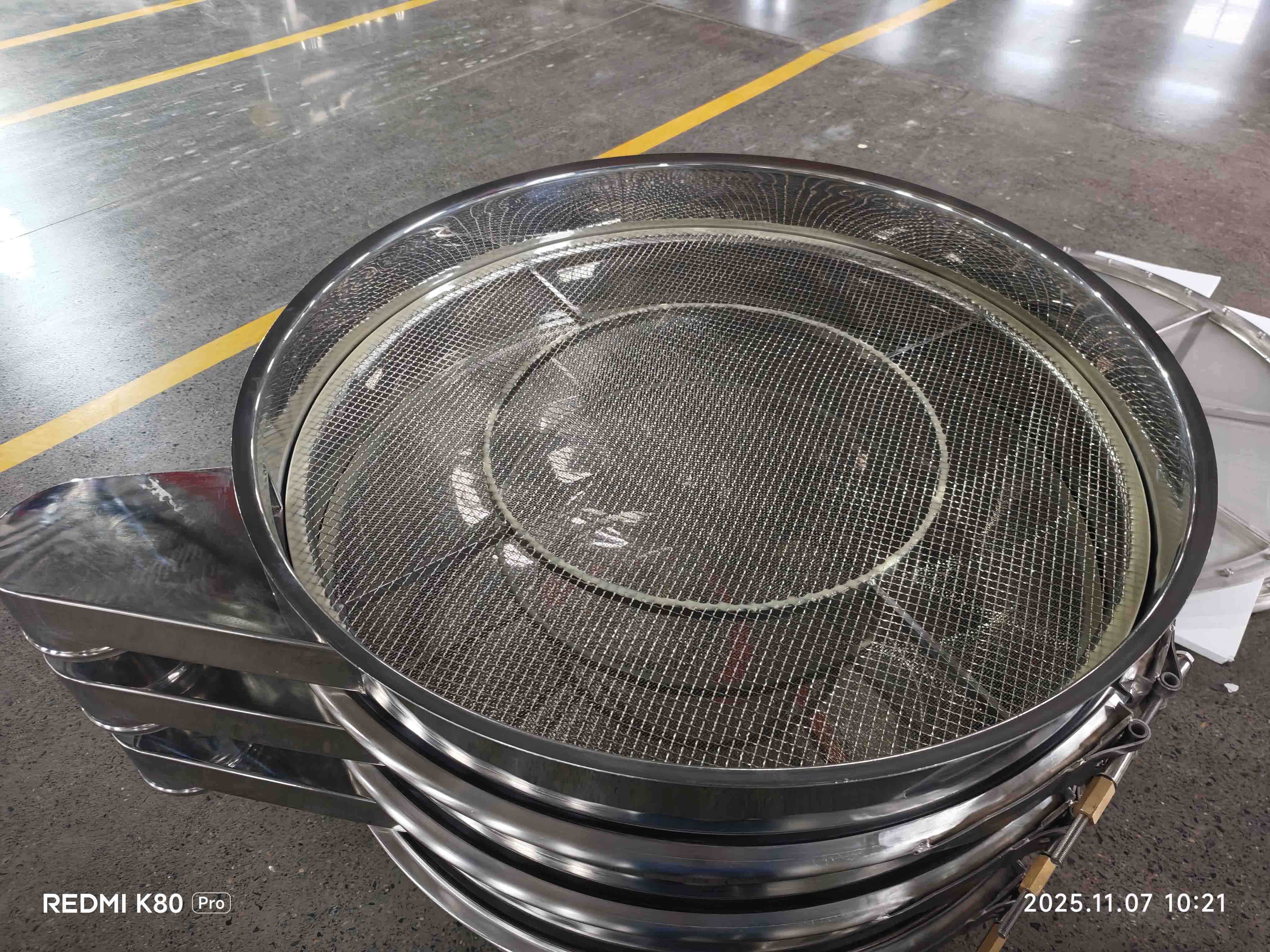

3. New type of frame structure, long service life, only 3-5 minutes to replace the screen.

4. Fully automated, continuous 7/24 operation.

5. Fully closed structure, the powder don't float in the sky, the liquid don't leak, no mesh jams.

Application Of Vibro Round Separators
1.Abrasive & Ceramics: alumina, quartz sand, slurry, atomizing soil particles.
2.Chemical: resin sand, pigment, washing powder, micropowder, paint, soda ash, lemon powder, rubber and plastics.
3.Food: sugar, salt, soda, MSG (monosodium glutamate), milk powder, soy-bean milk, yeast, juice, soy sauce, vinegar, etc.
4.Paper Making: coating, coated slurry, black-and-white liquid, waste liquor, papermaking liquid, waste water recycle.
5.Metallurgy: titanium oxide, zinc oxide, electromagnetic materials, metal powder, welding rod powder, etc.
6.Pharmaceutical: TCM (traditional Chinese medicine) powder, TCM liquid, western medical powder, western medical liquid, TCM & western medical particles, etc.
7.Environment Protection: rubbish, excrement, waste oil, food effluent, waste water processing, etc.
