Pleated Filter Cartridge

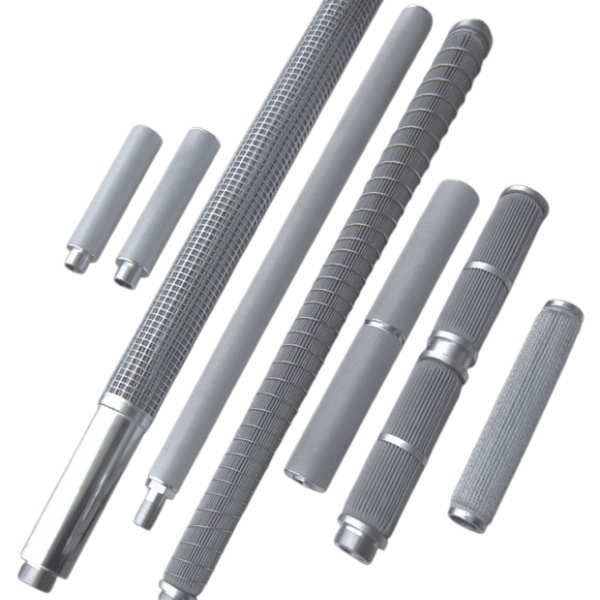

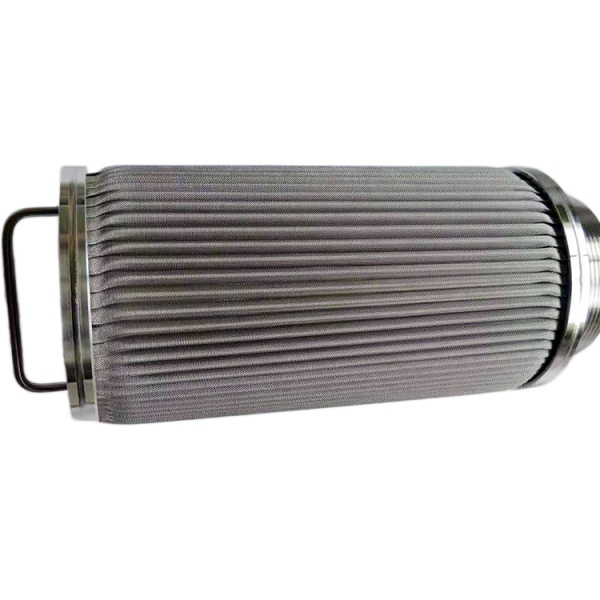

Pleated Filter Cartridge:

Our Pleated Filter Cartridge is a high-efficiency filtration component with a unique pleated structure, made of high-quality materials such as polypropylene, PTFE and 316L stainless steel. It features large filtration area, high precision, low pressure drop and long service life, widely used in water treatment, pharmaceutical, chemical, food and beverage industries for liquid/gas filtration, impurity removal and pre-filtration, with fully customizable specifications to meet diverse industrial needs.

As a high-efficiency core filtration component in the global industrial filtration field, the Pleated Filter Cartridge is highly favored for its unique structural design and excellent comprehensive performance. Different from traditional flat filter cartridges, our Pleated Filter Cartridge adopts an advanced pleating process, which folds the filter medium into a wave-like pleated structure, increasing the effective filtration area by 5-10 times compared with the flat structure . This special design not only improves filtration efficiency and dirt-holding capacity but also reduces flow resistance, ensuring stable flow rate during long-term operation  . Made of high-quality materials such as polypropylene (PP), polytetrafluoroethylene (PTFE), glass fiber and 316L stainless steel, our Pleated Filter Cartridge can adapt to various working environments, including normal temperature, high temperature, corrosive media and high-purity filtration scenarios   . It is widely used in water treatment, pharmaceutical, chemical, food and beverage, electronic and other industries, with diverse usage methods covering pre-filtration, precision filtration, polishing filtration and impurity removal  . This article comprehensively introduces the core features, regular specifications, key industry applications and usage methods of the Pleated Filter Cartridge, integrating all core keywords to help overseas customers quickly grasp product value and apply it to actual production.

1. Core Features of Pleated Filter Cartridge

Our Pleated Filter Cartridge integrates the advantages of unique pleated structure and high-quality filter materials, with outstanding performance in filtration efficiency, dirt-holding capacity and environmental adaptability, which is far superior to ordinary filter cartridges and becomes the preferred choice for industrial filtration:

8226. Large Filtration Area & High Efficiency: The unique pleated structure maximizes the effective filtration area of the filter medium, which is 5-10 times that of traditional flat filter cartridges . This design allows more fluid to pass through the filter cartridge per unit time, improving filtration efficiency while maintaining a low pressure drop (≤0.4MPa), effectively reducing energy consumption of the filtration system  . The filtration efficiency can reach 99.98% with a beta rating of 5000, ensuring thorough interception of impurities .

8226. Precise Filtration & Adjustable Precision: The filter medium adopts microporous materials with uniform pore size distribution, and the filtration precision can be adjusted from 0.1μm to 50μm according to actual needs  . It can effectively intercept tiny particles, colloids, bacteria and other impurities in liquids and gases, meeting the high-precision filtration requirements of pharmaceutical, electronic and high-purity water industries  . The absolute rated filtration ensures consistent and reliable filtration results .

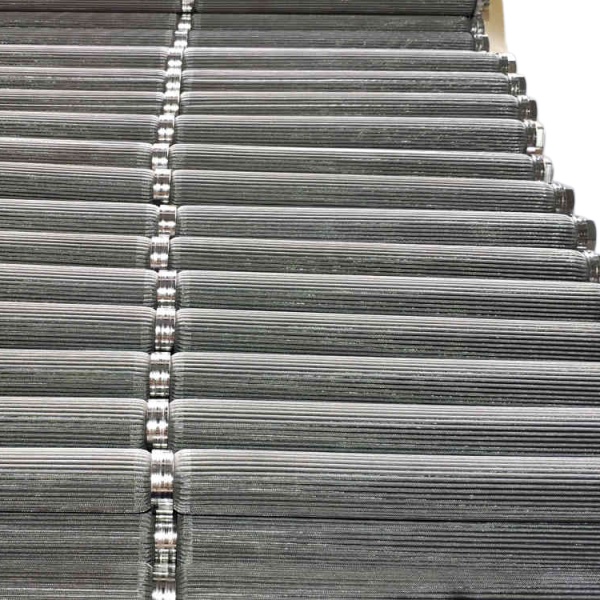

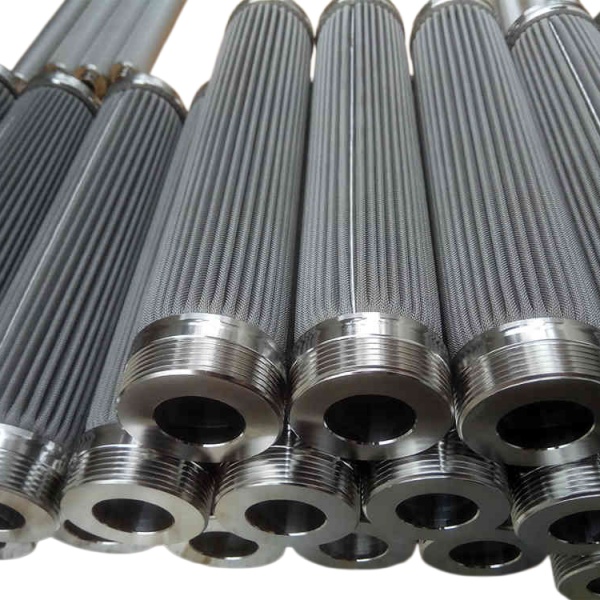

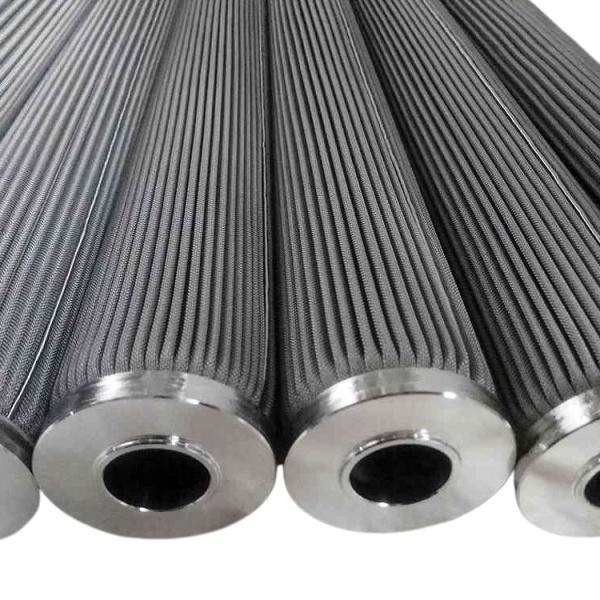

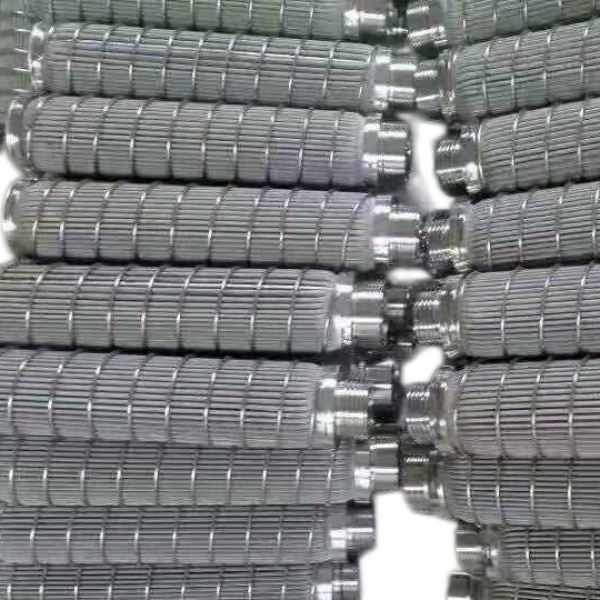

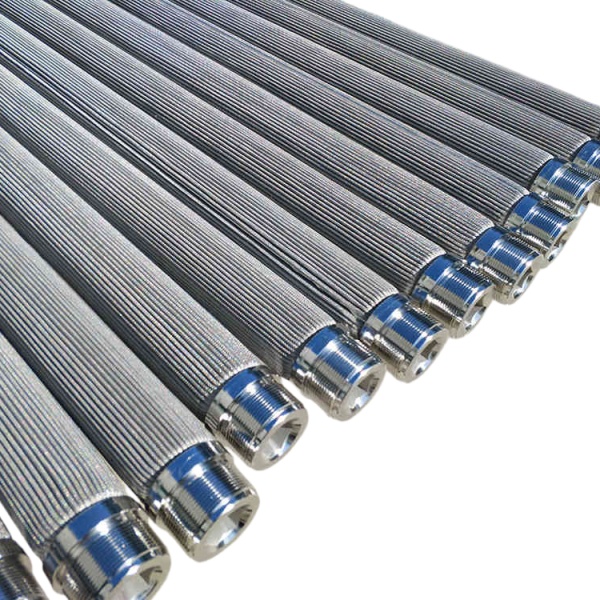

8226. Excellent Chemical Compatibility & Corrosion Resistance: We provide a variety of filter material options to adapt to different working environments. Polypropylene (PP) pleated filter cartridges are resistant to most weak acids and alkalis, suitable for general industrial filtration  . PTFE pleated filter cartridges have excellent chemical compatibility, can resist strong acids, strong alkalis and organic solvents, and are suitable for harsh corrosive filtration scenarios . 316L stainless steel pleated filter cartridges have good corrosion resistance and high-temperature resistance, suitable for high-temperature and corrosive media filtration .

8226. High Dirt-Holding Capacity & Long Service Life: The pleated structure provides sufficient space for impurity accumulation, with strong dirt-holding capacity, which can trap more impurities without frequent replacement  . The filter medium is made of high-quality materials with good wear resistance and stability, and the service life is 2-3 times that of ordinary filter cartridges . Some reusable types (such as 316L stainless steel) can be cleaned and reused, further reducing procurement costs .

8226. Low Pressure Drop & Energy Saving: The reasonable pleated structure reduces the flow resistance of the fluid, ensuring a low pressure drop during operation  . This not only improves the stability of the filtration system but also reduces the energy consumption of the pump, achieving energy-saving effects. Even in high-flow filtration scenarios, it can maintain stable performance without excessive pressure loss .

8226. Easy Installation & Customizable: The Pleated Filter Cartridge adopts a standard cylindrical design, which can be directly installed in various standard filter housings, with simple installation and replacement  . We can customize the filter material, filtration precision, size, length, connection method (thread, flange, O-ring) and pleat density according to customer needs, perfectly fitting different filter equipment and filtration scenarios  .

2. Regular Specifications and Parameters

We adopt standardized production processes and strict quality control (passing ISO 9001, ISO 14001 and SGS certifications) to ensure the consistency and stability of product specifications . The following are the regular specifications and parameters of the Pleated Filter Cartridge, which can be fully customized according to customer actual filtration needs and application scenarios:

Note: The above are regular specifications. We can adjust parameters such as filtration precision (0.1-50μm), outer diameter (20-150mm), length (customizable), working pressure (up to 10MPa), flow rate and filter material according to your specific filtration requirements   . The product can be supplied as finished filter cartridges or semi-finished products, and the minimum order quantity can be 1 piece, with free samples available for testing. The packaging adopts moisture-proof bubble wrap + fumigated wooden case to ensure safe transportation during international shipping. We also provide O-ring matching and installation guidance according to customer needs  .

3. Key Industry Applications and Usage Methods

Our Pleated Filter Cartridge has excellent comprehensive performance and diverse usage scenarios, covering almost all fields of industrial filtration. It is mainly used for liquid, gas and solid particle separation, purification and pre-filtration, providing efficient and stable filtration solutions for various industries. The specific applications and usage methods are as follows:

3.1 Water Treatment Industry

The water treatment industry is one of the most important application fields of the Pleated Filter Cartridge, covering domestic water purification, industrial wastewater treatment, reverse osmosis (RO) pre-filtration, seawater desalination pretreatment and high-purity water preparation  . Polypropylene and PTFE pleated filter cartridges are widely used here, which can effectively filter suspended solids, sediment, colloids and other impurities in water, protecting downstream membrane equipment and improving water quality  . Usage Method: Install the filter cartridge in the water treatment filter, used for pre-filtration of RO systems, pretreatment of seawater desalination, or terminal purification of domestic water; regularly replace the filter cartridge according to the pressure difference (recommended replacement when the pressure difference exceeds 0.15MPa) to ensure filtration efficiency  . For reusable types, clean them with backwashing or chemical cleaning to restore performance .

3.2 Pharmaceutical & Medical Industry

In the pharmaceutical and medical industry, the Pleated Filter Cartridge is widely used in drug purification, injection filtration, sterile air filtration, biological product separation and medical equipment cleaning  . It has high filtration precision (0.1-1μm) and can effectively intercept bacteria, microorganisms and tiny impurities in drugs, ensuring the purity and safety of drugs  . The product is made of medical-grade materials, meets GMP, FDA and USP Class 6 standards, and can withstand high-temperature and high-pressure sterilization . Usage Method: Install the high-precision PTFE or polyethersulfone pleated filter cartridge in the pharmaceutical filter, used for sterile filtration of injections, oral liquids and biological products; before use, perform a wetting procedure to ensure complete membrane saturation and avoid integrity test failure ; after use, replace or clean and sterilize the filter cartridge according to the usage cycle.

3.3 Chemical & Petrochemical Industry

In the chemical and petrochemical industry, the Pleated Filter Cartridge is used for raw material filtration, solvent purification, catalyst recovery, chemical reaction liquid filtration and waste gas/wastewater treatment  . PTFE and 316L stainless steel pleated filter cartridges are preferred, which can resist the erosion of strong acids, strong alkalis, organic solvents and other corrosive media . Usage Method: Install the filter cartridge in the chemical filter equipment, used for filtering impurities in chemical reactants, recovering catalysts in the reaction process, and purifying chemical solvents; regularly check the pressure difference, and replace or clean the filter cartridge in time to avoid equipment blockage and ensure stable operation of the production line  .

3.4 Food & Beverage Industry

In the food and beverage industry, the Pleated Filter Cartridge is used for raw material filtration, beverage clarification, edible oil purification, beer/wine filtration and food additive filtration  . The product is made of food-grade polypropylene or stainless steel, non-toxic and tasteless, meeting food safety standards  . It can effectively filter impurities, precipitates and suspended solids in food and beverages, ensuring product quality and taste . Usage Method: Install the food-grade pleated filter cartridge in the dedicated filter, used for filtering fruit juice, dairy products, edible oil and beer; regularly clean the filter cartridge with clean water or neutral detergent to avoid residue, and replace it when the filtration efficiency decreases  .

3.5 Other Industrial Fields

In the electronic and semiconductor industry, the Pleated Filter Cartridge is used for high-purity water filtration, electronic component cleaning fluid filtration and clean room air filtration, ensuring the quality of electronic products  . In the power generation industry, it is used for power plant condensate filtration, protecting turbines and heat exchangers from erosion and fouling . In the automotive industry, it is used for lubricating oil filtration and fuel filtration, extending the service life of engines . Usage Method: According to the specific equipment and filtration requirements, select the appropriate filter cartridge specification and installation method; for high-purity filtration scenarios, use PTFE or glass fiber filter cartridges and ensure the filter housing is properly vented to prevent membrane drying ; regularly maintain and replace the filter cartridge to ensure stable filtration performance.

4. Product Advantages and Why Choose Us

As a professional manufacturer of Pleated Filter Cartridge, we have more than 15 years of R&D and production experience, focusing on providing high-quality filtration components and personalized solutions for global industrial customers  . Our product advantages are as follows:

8226. Strict Quality Control: We adopt high-quality filter materials (polypropylene, PTFE, 316L stainless steel) and advanced pleating and hot-melt processes, without any binder, ensuring cartridge stability and safety  . From raw material selection to finished product inspection, every link is strictly controlled, and all products pass ISO 9001, ISO 14001 and SGS certifications, ensuring stable filtration performance, consistent quality and safe use  .

8226. Advanced Production Technology: We have a professional R&D team and mature production technology, adopting precision pleating equipment to ensure the uniformity of the pleated structure and the consistency of pore size  . We continuously optimize the production process, improve product performance, and can meet the high-precision and high-demand filtration needs of customers  .

8226. Professional Customization Capability: We can customize the Pleated Filter Cartridge according to the customer's filtration precision, working environment, equipment size and connection method  . We provide one-stop solutions from product design, sample production to finished product delivery, solving personalized needs and reducing procurement and processing costs  .

8226. Global Service & Timely Delivery: We have rich export experience, with products exported to Europe, America, Southeast Asia, India and other 67 countries and regions . We provide professional English technical support and after-sales service, customize packaging and delivery solutions according to the needs of customers in different countries and regions, ensure timely delivery (3-20 working days depending on quantity) and safe transportation, and establish long-term and stable cooperative relations with customers  .

The Pleated Filter Cartridge, as a high-performance, multi-functional and widely applicable filtration component, has become an indispensable core product in the global industrial filtration field. With its unique pleated structure, excellent filtration performance and diverse applications, it provides efficient and stable filtration solutions for various industries. Whether you are engaged in water treatment, pharmaceutical, chemical, food and beverage or other industries, we can provide you with the most suitable Pleated Filter Cartridge products and professional usage guidance. Welcome to contact us for more product details, quotes and free samples, and we look forward to cooperating with you to create a better future!
